New Launches



Full Bore Electromagnetic Flow Meter SROAT -2000 & SROAT 1000 A Plus

  • Sizes ranging from DN 10 – DN 1000
  • Wide choices of compatible electrodes, liners & Body materials
  • Pulse & Isolated 4-20 mA output
  • Empty tube detection possible
  • Accuracy ±0.5% of actual flow rate
  • 5000 / 10000 Number of readings can be logged
  • Four Numbers of Keys for Parameter Programming
  • Computer/Printer Interfacing with RS 232 port
  • Empty Tube Detection and Indication
  • Suitable to conductive liquids = 5 µs/cm
  • Stored/Online data can be stored in excel format (applicable for SS-2000)
  • Online data can be transferred by using GSM modem (applicable for SS-2000)

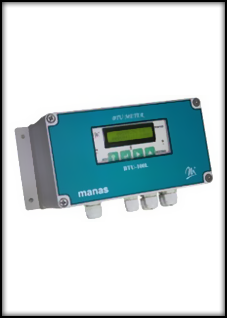

BTU meter for chiller application , SERIES : BTU-100L

  • Based on calculations of thermal power & energy consumed through measurement of flow, temperature difference of inlet & outlet of the medium.
  • 4-20 mA output proportional to power output.
  • 16x2 LCD, 9 digits for total energy & 5 digits for instantaneous power.
  • The engineering unit can be selected as either KW & KWHr or BTU/Hr & BTU.
  • Communication port RS 232/485 is available with MODBUS RTU.
  • Backup of totaliser on power failure in non volatile memory.
  • Logging history can be viewed on the screen.
  • Ingress Protection: IP65 Equivalent.

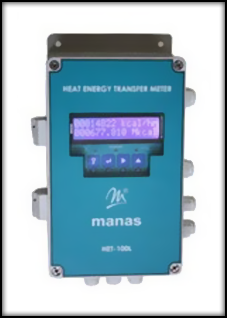

BTU Meter For heat transfer application, SERIES : HET-100L

  • Suitable for Thermic fluids like HYTHERM 500, HYTHERM 600, DOWTHERM A, DOWTHERM T etc.
  • Output in terms of 4-20mA which is proportional to Power obtained.
  • Communication Port (supports MODBUS-RTU) & Data Logging facility.
  • Password protection on all programming modes (except display mode) to avoid wrong programming by an unauthorized person.
  • Display of 16 x 2 Big Characters LCD with BLUE Backlight.
  • Buzzer indication for faults/Error with blinking LED (Programmable).
  • Fault Conditions - Indicated by different Error Codes.
  • Accuracy of ± 0.25 % of Full Scale.
  • Ingress Protection: IP65 Equivalent.

Water mass flow computing unit - WMFT-100

  • Suitable For boiler feed water with density compensation.
  • Online Computation For density Reducing Errors in Measurement Due To Pressure & Temperature.
  • Isolated 4-20mA D.C. output proportional to Flow Rate.
  • Linear or Square Root operation.
  • Availability of panel & Wall mounting.
  • Serial Interface with Computer through MODBUS RTU Protocol.
  • Two alarm settings are available and single alarm output is available.
  • If Flow rate exceeds the set reference flow, the lower 4 digit Display for Flow rate blinks.
